Vaadin Deployment on Hetzner — Part 3: Embedded Jetty

Third installment of the series Vaadin – Deployment on Hetzner. Jetty turns from a separately installed server component into a part of the application: its own bootstrap, its own classpath, no module mechanism anymore. All commands, outputs, and measurements come from an actual run on a Debian 13 server.

Starting Point

At the end of Part 2, a Vaadin application runs as ROOT.war in a Jetty 12.1.12 installed under /opt/jetty, reachable over HTTPS behind Caddy, as a hardened systemd service. Two things are maintained separately there: the application and the server it runs in.

This part removes that separation. Afterwards, the application brings its server along itself — as a dependency, not as an installation.

What Shifts as a Result

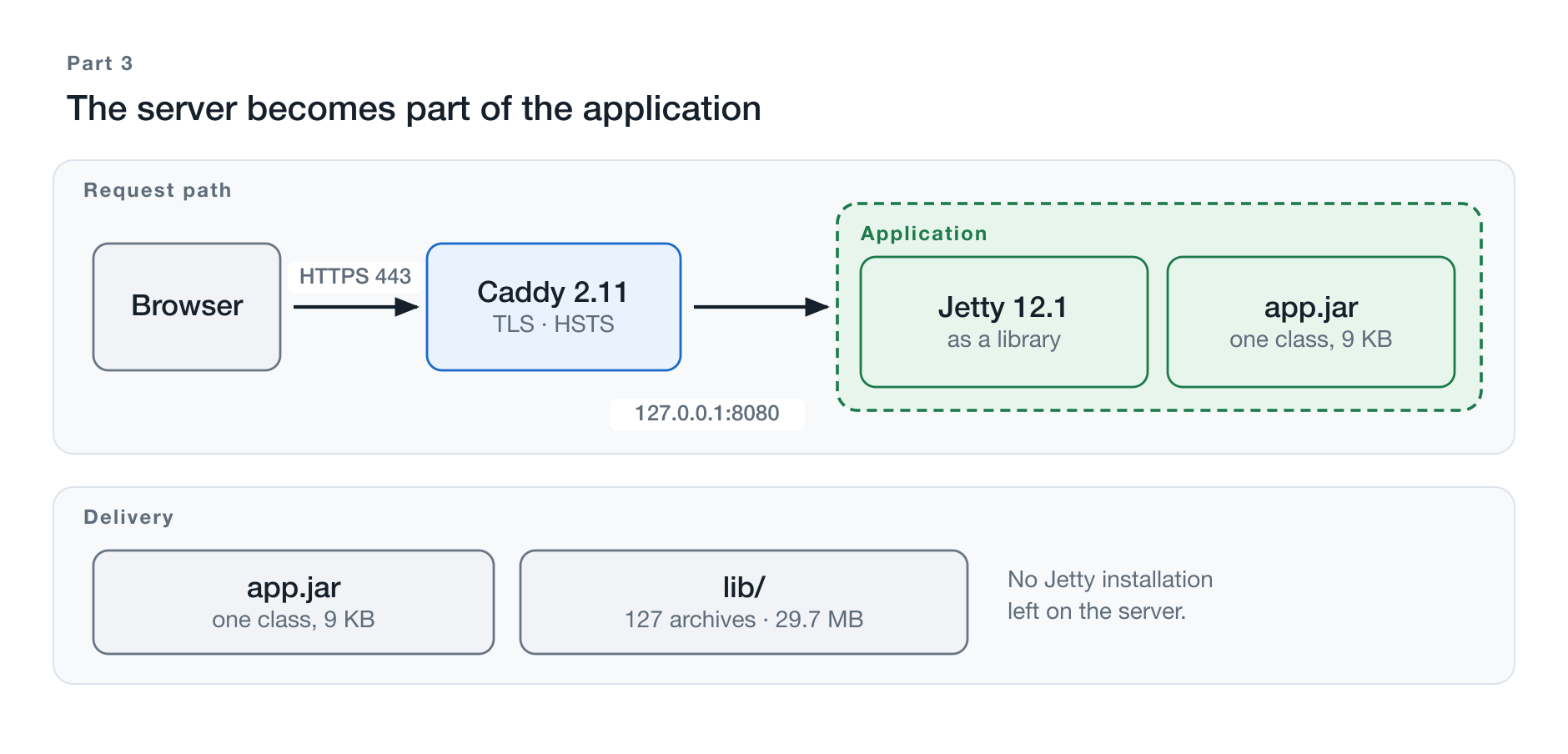

Figure 1: The dashed boundary now includes the server as well.

Part 1, Chapter 1 named the connecting thread of this series: the dashed boundary around what belongs to the application. In Parts 1 and 2, only the WAR lay behind this boundary. Now Jetty moves inside.

The last row is the actual point. Anyone who wants to switch the Jetty version afterwards changes a number in the pom.xml and ships the application again — no longer a symlink on the server.

The Repository Becomes a Reactor

Up to this point, the demo application was one Maven module. That worked as long as there was one delivery format. With the second one, it no longer worked well: the starter for embedded operation lived in src/main/java and was therefore compiled with every build — including the WAR build, where nobody calls it. This is exactly where the finding from Part 1, Section 4.5 came from: the complete Jetty ended up in the WAR because a single dependency stood there without a <scope>.

The remedy back then was a declaration. The cause only disappears now:

Blog-Vaadin-Deployment-on-Hetzner/     reactor
├── core/                              the application, the tests, the frontend bundle
├── war-jetty/                         ROOT.war for the external Jetty (parts 1 and 2)
└── embedded-jetty/                    own main() (this part)

One module per delivery format. The WAR module contains not a single line of Java source code — only a web.xml. The embedded module contains exactly one class. Everything else lives in the core and is used by both.

The Code for This Part

git clone https://github.com/svenruppert/Blog-Vaadin-Deployment-on-Hetzner
cd Blog-Vaadin-Deployment-on-Hetzner
git checkout teil-03

The state of Parts 1 and 2 — one module, building to target/ROOT.war — remains available on the tag teil-02. A git diff teil-02 teil-03 shows exactly what this part describes.

What This Part Does Not Cover

Packaging. At the end of this part, an application archive sits next to a directory containing its libraries. Whether that becomes a single archive or a tidy directory structure is the question for Part 4 — and it can only be asked meaningfully once the unpackaged case has been seen standing on its own.

What Does Embedded Jetty Mean?

The term sounds like a variant of the same thing. In fact, it describes a reversal of responsibility.

A Library Instead of a Server Installation

In the setup so far, Jetty is a program. It lives under /opt/jetty, it has its own directory structure, it is configured through files, and it starts the application. The application is an archive this program reads in.

Embedded, Jetty is a library. It sits on the classpath next to Jackson and SLF4J, it has no directory structure of its own, it is configured through Java code, and the application starts it. The program that loads the application becomes a dependency the application uses.

Application Lifecycle Instead of Container Lifecycle

The practical difference shows in the startup sequence.

With the external Jetty, systemd starts the container, the container looks for archives in webapps/, unpacks them, builds one web application context each, and calls the initializers inside. The application has no entry point; it gets found.

Embedded, systemd starts the application. Its main() method creates a server, mounts a context, starts it, and waits. The entry point is ordinary Java code that a narrative can walk along — and that is exactly what Chapters 4 through 9 do.

What Becomes Visible in the Process

The external Jetty takes care of a whole series of things without any of them showing up in the project. The module files under start.d/ numbered sixteen in the reference setup. Sixteen decisions that someone once made and that nobody sees afterwards.

Embedded, every one of them that is actually needed must appear in the code. That is more work — and it is the reason this part is instructive in the first place: what used to be configuration becomes readable.

Three of these decisions fail silently if you forget them. They get a chapter of their own in Chapter 10, because they make the difference between “runs” and “runs correctly”.

What Stays the Same

More remarkable than the differences is how little changes in operation. Service account, directory layout, hardening, configuration outside the artifact, credentials via systemd-creds, Caddy in front — all unchanged. The unit file swaps one line.

That is no coincidence but the result of the separation that Part 0 and Chapters 9 through 11 of Part 1 built up: the operational framework does not know how the application starts internally, and it does not need to.

Maven Dependencies

The external Jetty was set up with --add-modules=server,http,ee11-deploy,ee11-annotations,ee11-websocket-jakarta. Embedded, there are no modules — there are dependencies. Translating one into the other is the subject of this chapter.

Four Entries

<dependency>
    <groupId>org.eclipse.jetty</groupId>
    <artifactId>jetty-server</artifactId>
</dependency>
<dependency>
    <groupId>org.eclipse.jetty.ee11</groupId>
    <artifactId>jetty-ee11-webapp</artifactId>
</dependency>
<dependency>
    <groupId>org.eclipse.jetty.ee11</groupId>
    <artifactId>jetty-ee11-annotations</artifactId>
</dependency>
<dependency>
    <groupId>org.eclipse.jetty.ee11.websocket</groupId>
    <artifactId>jetty-ee11-websocket-jakarta-server</artifactId>
</dependency>

No version numbers — those come from the two BOMs that were already imported in Part 1. ${jetty.version} thus remains the only place where the Jetty release is recorded, now for the build instead of for the installation.

The Servlet API Switches Sides

<dependency>
    <groupId>jakarta.servlet</groupId>
    <artifactId>jakarta.servlet-api</artifactId>
    <scope>compile</scope>
</dependency>

In the WAR module, this says provided: available for compilation, left out at packaging time because the container supplies it. Here there is no container supplying anything — the application is one. So the API has to come along.

That is the same reasoning as in Part 1, Section 4.5, only applied in the opposite direction. Anyone who reads provided as “does not belong in the archive” has misunderstood it; it means “someone else provides this”. When there is no someone else, the answer changes.

Four Entries Nobody Ordered

<dependency><groupId>org.ow2.asm</groupId><artifactId>asm</artifactId></dependency>
<dependency><groupId>org.ow2.asm</groupId><artifactId>asm-tree</artifactId></dependency>
<dependency><groupId>org.ow2.asm</groupId><artifactId>asm-commons</artifactId></dependency>
<dependency><groupId>org.ow2.asm</groupId><artifactId>asm-analysis</artifactId></dependency>

ASM is the library Jetty’s annotation scanner uses to read class files. It appears here only to force a single version. Default resolution mixes asm 9.8 (via j2objc-annotations) with asm-tree and asm-commons 9.9.1 (via Jetty). This mixture breaks on Java 26 bytecode:

java.lang.IllegalArgumentException: Unsupported class file major version 70

The context then fails to start, and the message mentions neither Jetty nor Vaadin. It is included here because without prior knowledge it is almost impossible to place: class file version 70 is Java 26.

What Disappears

One dependency is removed from the core module without replacement — the library that encapsulated the embedded startup until now. With it goes the <scope>provided</scope> workaround from Part 1, Section 4.5, and the whole profile machinery that squeezed an additional archive out of a WAR module.

The reason this works: the embedded module has jar packaging from the start. Nothing needs to be worked around when the structure matches the intent.

The Application’s Entry Point

A web application with a main() method looks unusual at first. It is the core of this part.

The Class

public final class Application implements HasLogger {

  private static final String DEFAULT_HOST = "127.0.0.1";
  private static final int    DEFAULT_PORT = 8080;

  public static void main(String[] args) {
    new Application().launch();
  }
  …
}

It is the only class in the embedded-jetty module. Everything else — views, security, persistence, translations — lives in the core and is pulled in via a dependency. That is not frugality but the statement the split makes: how the application starts is a question of the delivery format, and nothing else.

Host and Port

private void launch() {
  String host = resolve("app.host", "APP_HOST", DEFAULT_HOST);
  int    port = resolvePort();
  …
}

private static String resolve(String systemProperty, String envVariable, String fallback) {
  String fromSystem = System.getProperty(systemProperty);
  if (fromSystem != null && !fromSystem.isBlank()) return fromSystem;
  String fromEnv = System.getenv(envVariable);
  if (fromEnv != null && !fromEnv.isBlank()) return fromEnv;
  return fallback;
}

Three sources in a fixed order: system property, environment variable, default value. The external Jetty made the same decision in start.d/http.ini; here it stands as a method you can read.

The default is 127.0.0.1, not 0.0.0.0. That is the same decision as in Part 1, Chapter 8, and here it matters even more: a typo in a configuration file gets caught during review, a wrong default in the code takes effect everywhere nobody configured anything.

The Check That Comes Before Everything Else

if (Application.class.getClassLoader().getResource(BUNDLE_MARKER) == null) {
  abort("Vaadin production bundle missing from the classpath (expected " + BUNDLE_MARKER
        + "). Build with `mvn -Pproduction package` before starting; without it the "
        + "server starts, answers 200 and serves a blank page.");
  return;
}

Five lines that catch one of the most annoying failure modes. Chapter 8 describes it in detail; the short version: if the built frontend is missing, the server starts anyway, answers with 200, and serves a white page. The error then shows up not in the server log but in the browser console — and anyone who does not look there searches in the wrong place.

The check turns this into a startup message with instructions for action.

Failing with a Statement

@SuppressFBWarnings(value = "DM_EXIT",
    justification = "intentional — main-class launcher exits non-zero so a process supervisor sees the failure")
private void abort(String message) {
  if (message != null) logger().error(message);
  System.exit(1);
}

System.exit(1) in an application is normally a warning sign. In a launcher class it is the right answer: systemd distinguishes a service that terminates with an error code from one that simply does not respond. Without this call, the JVM would keep running, Restart=on-failure would not kick in, and the service would count as “running”.

Creating and Configuring Jetty

Four lines bring the server up. Two of them deserve an explanation.

Server server = new Server();

HttpConfiguration httpConfig = new HttpConfiguration();
httpConfig.addCustomizer(new ForwardedRequestCustomizer());
httpConfig.setSendServerVersion(false);

ServerConnector connector = new ServerConnector(server, new HttpConnectionFactory(httpConfig));
connector.setHost(host);
connector.setPort(port);
server.addConnector(connector);

Server Without a Thread Pool

new Server() creates a QueuedThreadPool with default values behind the scenes. A custom pool would be possible:

QueuedThreadPool pool = new QueuedThreadPool(200, 8);
Server server = new Server(pool);

Here, deliberately, there is none. The reference setup drew the limit elsewhere: TasksMax=256 in the systemd unit from Part 1, Chapter 11. Two upper limits for the same thing are one upper limit too many — the smaller one wins, and whoever changes the other wonders why nothing happens. Measured in operation, 30 threads are running; the defaults are sufficient by a wide margin.

ForwardedRequestCustomizer — the Line Whose Absence Nobody Notices

This single line replaces --add-modules=forwarded from Part 2, Chapter 4. What it does and why its absence is dangerous is covered in Chapter 10; here, only the place where it belongs: on the HttpConfiguration, before the connector is created. Added afterwards, it no longer takes effect, because the HttpConnectionFactory has already captured the configuration.

setSendServerVersion(false)

Without this line, Jetty sends a Server: Jetty(12.1.12) header entry with every response. That is not a security hole, but it is free information for every scanner about which release to attack. The external Jetty switched this off via start.d/http-config.ini; here it is one line of Java.

Bind Address: the Same Decision, a Different Place

connector.setHost(host);   // 127.0.0.1

Part 1, Chapter 8 explained why the application server listens exclusively on the loopback address: what cannot be reached does not have to be defended. The reasoning holds unchanged — only now it lives in the source code instead of a configuration file.

And it is the precondition for the line above it. Evaluating forwarding headers is only defensible because the only party able to set them is the reverse proxy on the same machine. If the connector were bound to 0.0.0.0, anyone on the network could claim the request arrived over HTTPS from any address they like.

These two lines belong together, and in the embedded setup they stand visibly side by side for the first time. In the external Jetty they lived in two different .ini files.

Configuring the Servlet Context

The server alone does not answer any request. It needs a context — the counterpart to what the external Jetty created when unpacking a WAR.

WebAppContext webapp = new WebAppContext();
webapp.setContextPath("/");
webapp.setBaseResource(webResources(webapp));

String scanPattern = System.getProperty("app.scan.pattern", DEFAULT_SCAN_PATTERN);
webapp.setAttribute(MetaInfConfiguration.CONTAINER_JAR_PATTERN, scanPattern);
webapp.setAttribute(MetaInfConfiguration.WEBINF_JAR_PATTERN, scanPattern);
webapp.setParentLoaderPriority(true);

WebAppContext or ServletContextHandler?

Jetty offers both. ServletContextHandler is the leaner path: no scan, no separate class loader, less startup time. For many embedded applications it is the right choice.

For a Vaadin application it is not. Vaadin finds its @Route classes through the RouteRegistryInitializer — a ServletContainerInitializer announced via META-INF/services and searched for by the container. Take that search away, and you have to register the routes by hand. The effort does not disappear; it merely changes location.

WebAppContext brings the search along. The price is in the next line.

The Scan Pattern Is a Tuning Knob

private static final String DEFAULT_SCAN_PATTERN = ".*\\.jar$";

This pattern says: open every archive on the classpath and search it for initializers with ASM. In the reference setup, that is 127 of them.

That is why the pattern does not sit in the code as a constant but behind a system property:

java -Dapp.scan.pattern='.*(vaadinapp|flow|vaadin|jcustos)-.*\.jar$' …

Narrowing it down shortens startup measurably — and buys you a list that wants to be maintained with every new dependency. The reference setup therefore leaves it wide; the option is in the code anyway, because otherwise nobody would find it.

How much the scan accounts for can be quantified with involuntary precision: a start without the scan takes 139 ms, with the scan 1,523 ms. How this measurement came about is told in Chapter 12 — it was a failure.

setParentLoaderPriority(true)

WebAppContext comes with its own class loader, which normally searches the web application first and only then the parent. In the WAR model that is correct: an application may bring its own release of a library without the container interfering.

Embedded, this separation no longer exists. Application and server sit on the same classpath; a class loader that continues to assume two worlds only creates confusion — in the worst case the same class loaded twice, with a ClassCastException nobody understands. true switches back to the ordinary Java order.

It is the same issue that Part 1, Section 4.5 described from the other side: there, Jetty’s precedence rules protected the installed Jetty from being displaced by a bundled one. Here there is no installed Jetty left to protect.

Integrating Vaadin

The context is in place. Now the application goes in — and in the process, a file resurfaces that was taken for granted in the WAR model.

ServletHolder holder = new ServletHolder(new AppServlet());
holder.setInitParameter("i18n.provider", "com.svenruppert.flow.i18n.AppI18NProvider");
holder.setAsyncSupported(true);
holder.setInitOrder(1);
webapp.addServlet(holder, "/*");

Five lines that do exactly what the web.xml does in the WAR module:

<servlet>
    <servlet-name>Vaadin Servlet</servlet-name>
    <servlet-class>com.svenruppert.flow.AppServlet</servlet-class>
    <async-supported>true</async-supported>
    <load-on-startup>1</load-on-startup>
    <init-param>
        <param-name>i18n.provider</param-name>
        <param-value>com.svenruppert.flow.i18n.AppI18NProvider</param-value>
    </init-param>
</servlet>
<servlet-mapping>
    <servlet-name>Vaadin Servlet</servlet-name>
    <url-pattern>/*</url-pattern>
</servlet-mapping>

Line for line the same. That is no coincidence — the deployment descriptor and programmatic registration are two notations for the same Servlet API.

The Parameter That Costs a Language

i18n.provider looks like a nicety and is not. Vaadin V25 does not look up the I18NProvider via META-INF/services but exclusively through this init parameter. If it is missing, the framework uses DefaultI18NProvider — and that one has a defect Part 1 already mentioned: it falls back to the JVM’s default language. On a German machine, every request for English then returns German text.

The application starts without complaint. The language switcher appears, it can be operated, and it changes nothing. Whoever discovers this in production searches for a long time.

It is the first of three values that get lost silently during the migration — Chapter 10 covers the other two.

setInitOrder(1)

The counterpart to <load-on-startup>1</load-on-startup>. Without it, the container creates the servlet only on the first request. The application still runs — but the first visitor pays for the entire initialization: building the Vaadin services, opening the datastore, and wiring the security layers.

For a service behind a reverse proxy this means: the first request after every restart runs into a timeout, and the access log records a 502 with no explanation. The number 1 moves this work into startup, where it belongs and where systemctl start waits for it.

AppServlet Stays Where It Is

What is remarkable is what does not appear here: no modified servlet class. It is the same AppServlet as in the WAR, unchanged, from the core module.

Both delivery formats register the same class with the same parameters — one through a descriptor, the other through five lines of Java. The difference between Parts 2 and 3 is not in the application. It is in who starts it.

Production Resources

A WAR has a root directory. Everything inside it is served by the container. An application archive has none — and that is exactly where the migration fails most often.

Two Kinds of Files, One Problem

The application serves two kinds of static files:

The first kind was never a problem: Vaadin puts it in a place it finds again on its own. The second kind lived in the WAR root — and that root no longer exists.

The Solution Is in the Servlet Specification

An archive may contribute web resources if they sit under META-INF/resources. The container serves them as if they were in the web application’s root directory. That is precisely what this mechanism is for, and it applies to both delivery formats.

core/src/main/resources/META-INF/resources/
├── images/portrait-sven.jpg
└── icons/github-mark.svg, linkedin-mark.png

This keeps the references in the source code unchanged:

new Image("images/portrait-sven.jpg", …)

One source, two packagings, the same URLs. The WAR gets the files through WEB-INF/lib/vaadinapp-core.jar, the embedded setup through the classpath.

The Four Lines Without Which It Is Not Enough

For the WAR, the container takes care of the rest. Embedded, the context must learn where its base is — and one lookup is not enough:

private Resource webResources(WebAppContext webapp) throws IOException {
  ResourceFactory factory = ResourceFactory.of(webapp);
  List<Resource> roots = Collections
      .list(Application.class.getClassLoader().getResources("META-INF/resources/"))
      .stream()
      .map(url -> factory.newResource(url.toString()))
      .filter(Objects::nonNull)
      .toList();
  logger().info("Serving static web resources from {} classpath root(s)", roots.size());
  return ResourceFactory.combine(roots);
}

getResources, plural, not getResource. In the reference setup, this line reports at startup:

Serving static web resources from 5 classpath root(s)

Five, not one: the core module contributes images and icons, the Vaadin archives their themes and the client engine. Take only the first root, and you get an application in which either your own images or the Vaadin theme is missing — depending on which archive the class loader finds first.

The Failure Case, Demonstrated Once

The most expensive mistake in this part does not look like one at all. A build without the production profile:

mvn clean package          # without -Pproduction

Afterwards, the built frontend is missing. The server starts anyway:

[main] INFO  org.eclipse.jetty.server.Server - Started oejs.Server@… @1123ms

curl reports 200. The access log is unremarkable. In the browser the page stays white, and the only hint sits in the developer console: references to VAADIN/build/… that return 404.

That is why Application contains the check from Chapter 4:

private static final String BUNDLE_MARKER = "META-INF/VAADIN/webapp/index.html";

if (Application.class.getClassLoader().getResource(BUNDLE_MARKER) == null) {
  abort("Vaadin production bundle missing from the classpath (expected " + BUNDLE_MARKER
        + "). Build with `mvn -Pproduction package` before starting; without it the "
        + "server starts, answers 200 and serves a blank page.");
}

A mute browser error becomes a startup message with instructions for action, and the service terminates with an error code instead of appearing to run.

Five lines against a lost evening. Part 1, Chapter 4 described the same trap for the WAR; there it remained a warning. Here it is caught, because embedded there is nobody left who would complain.

Where the Bundle Is Built

One point that surprises when splitting into modules: build-frontend runs not in the packaging module but in the core.

The Vaadin documentation is unambiguous here. The build generates the frontend files in the module that configures the plugin; with jar packaging they end up under target/classes/META-INF/VAADIN/webapp/ and thus travel into the core archive. Both packagings fetch them from there via the classpath.

The cross-check after the build:

unzip -l core/target/vaadinapp-core-*.jar | grep -c 'META-INF/VAADIN/webapp'

137

Put the plugin into a packaging module instead, and you build the bundle where the other packaging cannot see it — and find the mistake only on the first page load.

Lifecycle

The server is assembled. What remains is the question of who stops it — and what happens when nobody thinks of it.

Server server = server(host, port);
server.start();
logger().info("Embedded Jetty serving http://{}:{}/", host, port);
server.join();

start() Returns, join() Does Not

start() brings the server up and returns control. Without the last line, main() would then run to its end, the JVM would exit, and the service would be gone again after one second.

join() blocks until the server stops. This one line is the difference between a program that gets something done and a service that runs.

The message in between is not decoration. It is the only place where the journal records which address the service actually listens on — and thus the first thing you look for when Caddy reports 502.

Stopping Without Damaging the Datastore

The application keeps an Eclipse Store datastore open. A process that simply gets killed leaves it unchanged in the best case and incomplete in the worst.

server.setStopAtShutdown(true);

With this, Jetty registers its own shutdown hook with the JVM: on SIGTERM, the server shuts down in an orderly fashion, the contexts are stopped, and the application gets the opportunity to close its resources.

The counterpart in the systemd unit has been in place since Part 1:

KillSignal=SIGTERM
TimeoutStopSec=30

systemd sends SIGTERM and waits thirty seconds before getting tougher. Both sides have to match — a service with a shutdown hook and KillSignal=SIGKILL would have the hook for nothing.

The Line That Was Not Needed in the WAR Model

SuccessExitStatus=143

143 is 128 + 15, that is, “terminated by signal 15”. A service that shuts down properly on SIGTERM exits with exactly this value — and without this line, systemd would consider that a failure. With Restart=on-failure, that would lead to a service that restarts itself after every planned stop.

The line dates from Part 1 and continues to apply unchanged. It appears here because it is easy to overlook in the embedded setup: whoever rewrites the unit instead of adapting it leaves it out and wonders.

Failure at Startup

} catch (Exception e) {
  logger().error("Failed to start embedded Jetty on {}:{}", host, port, e);
  stop(server);
  abort(null);
}

stop(server) before abort(...): if the server has already claimed a port and something went wrong only afterwards, this call releases it. Without it, the port would stay occupied until the process ends — and on the automatic restart five seconds later, the next attempt would fail with a BindException whose cause then looks like an entirely different problem.

What the Module Mechanism Used to Take Care Of

The server runs, the application responds, the pages render. This is where a migration usually stops — and this is exactly where the most important part is still missing.

Part 2 spent two chapters setting up the external Jetty for operation behind Caddy. Both happened through modules:

sudo java -jar /opt/jetty/start.jar --add-modules=forwarded
sudo java -jar /opt/jetty/start.jar --add-modules=ee11-websocket-jakarta

Embedded, there are no modules. Both have to go into the code — and both fail silently if you forget them. No error, no log entry, no complaint.

First: The Request Does Not Come from Where It Comes From

Behind Caddy, every request reaches the application server via 127.0.0.1, unencrypted, with a different hostname than the one the browser called. From the application’s point of view, this looks like local access over HTTP.

The consequence is not an error message but a wrong conclusion: Vaadin sets the session cookie without the Secure flag, because the connection appears to be unencrypted. A cookie without this flag may also be sent by the browser over unencrypted connections.

One line fixes this:

httpConfig.addCustomizer(new ForwardedRequestCustomizer());

The proof takes two calls — without and with the header Caddy sets:

curl -s -D- -o /dev/null http://127.0.0.1:8080/login | grep -i set-cookie

set-cookie: JSESSIONID=node0…; Path=/

curl -s -D- -o /dev/null -H 'X-Forwarded-Proto: https' \
     http://127.0.0.1:8080/login | grep -i set-cookie

set-cookie: JSESSIONID=node0…; Path=/; Secure

Same server, same application, one difference in the result. Checked via the public address:

curl -s -D- -o /dev/null https://demo.svenruppert.com/login | grep -i set-cookie

set-cookie: JSESSIONID=node01ggmnynrf3f7q162xs5dytkyna5.node0; Path=/; Secure

Why Evaluating Them Is Defensible at All

Forwarding headers are claims made by the sender. Whoever evaluates them believes a stranger about where the request comes from and over which protocol.

What makes this defensible is a decision from Part 1, Chapter 8: the connector listens on 127.0.0.1. The only party able to set these headers is thus a process on the same machine — the reverse proxy. If it were bound to 0.0.0.0, anyone on the network could claim their request arrived over HTTPS from any address, and the application would write it into the log and into its access decisions.

In the external Jetty, these two decisions that belong together lived in two different .ini files. In the code, they are seven lines apart.

Second: Push Needs a Container That Nobody Brings Along

JakartaWebSocketServletContainerInitializer.configure(webapp, null);

Vaadin Push keeps a persistent connection open. For that, the servlet context needs WebSocket support, which is not present on its own in the embedded setup. The call must happen before the context starts; afterwards it is too late, and no message tells you so.

Without it, Vaadin falls back to long polling, or the connection fails. The application remains usable — server-initiated updates just no longer arrive, or arrive late.

The proof is a connection upgrade:

curl -s -o /dev/null -w '%{http_code}\n' \
     -H 'Connection: Upgrade' -H 'Upgrade: websocket' \
     -H 'Sec-WebSocket-Version: 13' -H 'Sec-WebSocket-Key: dGhlIHNhbXBsZSBub25jZQ==' \
     'http://127.0.0.1:8080/VAADIN/push?v-r=push&X-Atmosphere-transport=websocket'

101

101 Switching Protocols — the upgrade succeeds. A 200 here would be the warning sign: then ordinary request processing would have answered, and the upgrade would not have happened.

Third: The Language Provider from Chapter 7

The i18n.provider parameter belongs to the same family. It, too, used to live in a file the container read — the web.xml —, its absence, too, produces no error, and its consequence, too, only shows in operation.

The Pattern Behind It

Three values, three failures without a symptom. That is no coincidence but the nature of configuration that exists as a default: if it is missing, a default value applies, and default values are made for the simple case — directly reachable server, no encryption, no persistent connections, one language.

The embedded setup is therefore no less secure than the external one. It merely shifts where the decision lives: from a file someone once created into code that gets compiled. What is missing in both cases is feedback — which is why these three points are paired with the three checks from this chapter, and why those checks belong in the operating procedures and not only here.

Configuring the Embedded Server

Part 2, Chapter 6 established the rule: configuration does not belong in the artifact. It applies here unchanged — only the artifact is a different one.

Three Sources, Fixed Order

private static String resolve(String systemProperty, String envVariable, String fallback) {
  String fromSystem = System.getProperty(systemProperty);
  if (fromSystem != null && !fromSystem.isBlank()) return fromSystem;
  String fromEnv = System.getenv(envVariable);
  if (fromEnv != null && !fromEnv.isBlank()) return fromEnv;
  return fallback;
}

The order is not arbitrary. The system property wins because it lives in the unit and thus under the server’s version control; the environment variable comes from a file that someone else can maintain as well; the default only applies where nobody said anything.

What Is Deliberately Absent Here

No configuration file format. It would be possible to read an application.properties. The reference setup does not, because every additional source makes the question “where does this value come from” harder to answer — and because systemd, with EnvironmentFile, already provides an answer that needs no library.

No reloading at runtime. The service reads its configuration at startup. Whoever changes it restarts — four seconds of downtime, measured in Chapter 12. An application that picks up configuration while running has to answer, for every value, what happens to the requests that are in flight at that moment. That is effort that does not pay off here.

The Difference from the WAR Model

Exactly one: app.storage.dir. This property has been in the unit since Part 1, because the application’s default is a relative path and ProtectSystem=strict makes the working directory read-only. Nothing changes here — the finding from Part 1 applies to both delivery formats alike.

Everything else — credentials via systemd-creds, EnvironmentFile, file permissions — is carried over unchanged from Part 2. That is the actual message of this chapter: the operational framework does not care who starts the server.

Embedded Jetty Under systemd

The unit from Part 1 changes one directive. The rest stays, line for line — and that is the outcome the separation from Part 0 was aiming at.

Before and After

 ExecStart=/var/lib/vaadinapp/.sdkman/candidates/java/current/bin/java \
-    -Djetty.home=/opt/jetty \
-    -Djetty.base=/opt/vaadinapp \
     -Djava.io.tmpdir=/var/lib/vaadinapp/work \
     -Dapp.storage.dir=/var/lib/vaadinapp/data \
     --add-exports java.base/jdk.internal.misc=ALL-UNNAMED \
     --enable-native-access=ALL-UNNAMED \
     -XX:MaxRAMPercentage=75 \
     -XX:+ExitOnOutOfMemoryError \
-    -jar /opt/jetty/start.jar
+    -cp /opt/vaadinapp/app.jar:/opt/vaadinapp/lib/* \
+    com.svenruppert.flow.Application

Two lines go, two come in. Both hardening drop-ins remain untouched — the same directives, the same hardening score of 1.1.

The asterisk in lib/* is not a shell glob. systemd does not expand it, and that is a good thing: Java knows this notation in the classpath itself and resolves it at startup.

The Directory on the Server

/opt/vaadinapp/
├── app.jar            8,908 bytes — just the launcher class
├── lib/               127 archives, 29.74 MB
├── logs/
└── releases/          archive of the shipped releases

The application archive is nine kilobytes. It contains one class. Everything else sits next to it — including the application’s core, as one of the 127 archives.

⚠️ The First Start Fails

It actually did fail, with a 503:

java.lang.RuntimeException: Unable to create FileSystem for /opt/vaadinapp/lib/._jspecify-1.0.0.jar
Caused by: java.util.zip.ZipException: zip END header not found

._jspecify-1.0.0.jar — with a leading dot and underscore. That is not a library but a companion file macOS creates for files with extended attributes. When packing with tar, they travel into the archive; the hint is already there at unpack time:

tar: Ignoring unknown extended header keyword 'LIBARCHIVE.xattr.com.apple.provenance'

Eleven such files ended up in lib/. And Java’s classpath wildcard lib/* picks up every file ending in .jar — it checks nothing, it only expands.

The remedy when packing:

COPYFILE_DISABLE=1 tar czf paket.tgz app.jar lib

or on the target system:

find /opt/vaadinapp -name '._*' -delete

Why this could not happen with the WAR: a WAR is a single archive written by Maven. Only a classpath built from a directory makes the application depend on that directory containing nothing but valid archives. The delivery format brings a new source of error that has nothing to do with Jetty.

⚠️ Why There Is No java -jar

The obvious idea: use addClasspath to write a Class-Path into the application archive’s manifest, and java -jar app.jar will do.

That works — apparently. The class loader resolves the archives, the server starts, the application responds. Every request, however, then ends with:

java.lang.NullPointerException: Cannot invoke
"com.vaadin.flow.server.StaticFileHandler.serveStaticResource(…)"

The reason sits one level deeper. With java -jar, the java.class.path property contains a single entry — the application archive. The manifest’s Class-Path entries are not in it. And this is precisely the property Jetty’s MetaInfConfiguration reads to decide which archives the annotation scanner opens.

No scan, no RouteRegistryInitializer, no StaticFileHandler. The server is healthy; the servlet is not.

The telltale measurement is the startup time. With the identical 127 archives:

The missing second is the scan. Whoever does not know the difference takes the faster start for a win.

That is why the manifest deliberately carries no Class-Path, and the launch command is explicitly:

java -cp 'app.jar:lib/*' com.svenruppert.flow.Application

The Teardown

After the switch, the Jetty installation becomes superfluous:

sudo rm -f  /opt/jetty                      # Symlink
sudo rm -rf /opt/jetty-home-12.1.12         # the installation
sudo rm -rf /opt/vaadinapp/{start.d,webapps,resources,environments}

What is remarkable about the 53 MB: the distribution contains 232 archives, of which 26 were on the classpath in operation. That is not a defect but the way a server distribution is built — it ships all modules, some get activated. Embedded, this reserve disappears, because the dependencies are named.

Afterwards, /opt contains nothing but vaadinapp.

Caddy Remains Unchanged

The shortest chapter of this part, and one of the most telling.

The File

demo.svenruppert.com {
    reverse_proxy 127.0.0.1:8080
    …
}

Unchanged. No restart, no reload, no adjustment. Caddy talks to 127.0.0.1:8080 and does not know what runs behind it — previously an installed servlet container with an archive inside, now an application with its own server.

Why This Cannot Be Taken for Granted

Because it could easily have gone differently. The embedded setup could have

• listened on a different port,
• bound to 0.0.0.0,
• ignored the forwarding headers,
• refused WebSocket connections.

In all four cases Caddy would have needed adjustment, or the application would have worked incorrectly. That none of this was necessary is the result of the decisions from Chapters 5, 7, and 10 — they are all aligned to offer the same interface as before.

The Cross-Check

curl -s -o /dev/null -w '%{http_code}\n' https://demo.svenruppert.com/
curl -s -D- -o /dev/null https://demo.svenruppert.com/login | grep -i set-cookie
curl -s -D- -o /dev/null https://demo.svenruppert.com/ | grep -i strict-transport

200
set-cookie: JSESSIONID=node01ggmnynrf3f7q162xs5dytkyna5.node0; Path=/; Secure
strict-transport-security: max-age=31536000; includeSubDomains

The same three lines as at the end of Part 2.

The Boundary That Becomes Visible Here

Caddy and the application have a contract: HTTP on 127.0.0.1:8080, with forwarding headers. As long as both sides keep it, each side is replaceable for the other.

That is why the series chose this order. Had the reverse proxy not already been set up and described in Part 2, this part would have to cover it as well — and the claim “none of this changes” would not be verifiable, because there would be no before.

Security Implications

The switch shifts a responsibility, and an uncomfortable one at that.

The Jetty Version Now Belongs to the Application

Before: when a security advisory for Jetty appears, someone downloads the new distribution, moves the symlink, restarts the service. The application is not touched, not rebuilt, not retested.

After: the same advisory means changing a number in the pom.xml, rebuilding, running the test suite, and shipping a release.

The last row is the dangerous one. With the external Jetty, the installation sits visibly under /opt/jetty; it shows up in every inventory. Embedded, Jetty is one line among 127 in a dependency tree. A server whose operating system is well maintained can contain a three-year-old Jetty release without anyone noticing.

What helps against this is not a decision about the setup but one about the process: a dependency check in the build that reports known vulnerabilities. The project generates a bill of materials (CycloneDX-SBom) with every build — so the foundation for that is in place.

What Gets Better

There is no second release anymore. Part 1, Section 4.5 described the case of a WAR bringing its own Jetty, with the installed release shadowing it. As long as the two match, all goes well; after that, the wrong class wins at some unshielded spot. This source of error disappears: there is only one Jetty left, and it is recorded in the pom.xml.

What was built is what runs. A WAR is an incomplete artifact — it needs a container of matching release with matching modules. A classpath is complete. What starts on the development machine also starts on the server, because both use the same list.

The server’s attack surface shrinks. 71 MB less installed software, 232 fewer archives on disk, no deployment directory that a process with write permissions could fill. The teardown from Chapter 12 is not just tidying up.

What Stays the Same

The hardening score. systemd-analyze security vaadinapp reports 1.1 before and after, with the same directives in the same drop-in.

That is expected and still worth mentioning: hardening describes what the process may do — which directories it may write, which system calls it may issue, which privileges it may escalate. These questions are independent of who starts the server inside the process. A hardening score that changed with the launch method would have been attached at the wrong place.

External Versus Embedded Jetty

Both setups ran on the same machine, with the same application, behind the same Caddy. What follows is measured, not estimated.

The Numbers

Each value is the mean of three runs. Individual downtime values for the embedded setup: 4,517, 4,868, and 4,670 ms.

The Row That Contradicts Expectation

Part 2, Chapter 8 ended with an observation: an archive smaller by a quarter had not reduced memory consumption. The explanation back then: what was removed had never been loaded in the first place.

Here it is the other way around, and the explanation is the same. The delivery grows from 21.78 to 29.75 MB, the classpath lengthens from 112 to 127 archives — and memory consumption still drops by 112 MiB.

Both times, what was measured was not the amount of bytes shipped but the amount of loaded classes. The external Jetty brings its module system, its deployment scanner, and its own startup machinery; the embedded setup loads only what the application calls.

Whoever takes an artifact’s size as a measure of its resource consumption is wrong in both directions.

What the Numbers Do Not Show

Downtime drops by roughly 780 ms, which is less than the elimination of unpacking would suggest. The reason is in the measurement from Part 2: over forty percent of the startup time goes to Vaadin initialization — to the application itself. Changing the launch mechanism cannot change that.

Whoever expects a dramatically faster start from embedded operation will be disappointed. Four seconds remain four seconds.

Responsibility, Maintenance, Tooling

The second-to-last row is often overlooked. An installed Jetty can serve several archives at once. Whoever runs three small applications on one server pays the base footprint of a JVM three times when embedded. With one application per server — the case of this series — that is not an argument.

What Stays the Same in Both Cases

Directory layout, service account, hardening, journald, configuration outside the artifact, credentials via systemd-creds, Caddy, update and rollback. Everything Parts 0 and 2 built survives the switch unchanged.

That is not a side note but the argument for the order of this series: whoever builds the operational framework first and keeps it independent of the delivery format can swap that format later without touching everything else again.

When Does Your Own Embedded Jetty Make Sense?

The answer hangs on a single question: who maintains the server?

In Favor

When the same person is responsible for the application and the server. Then the separation between the two is artificial, and a number in the pom.xml is the shorter path than a symlink on a machine.

When the application ships frequently. A security update for Jetty is then no special case; it travels with the next release anyway.

When the target server is supposed to contain as little as possible. A JVM suffices. No server installation, no deployment directory, no module configuration — 71 MB less and one software component fewer that someone has to keep an eye on.

When the setup is supposed to be reproducible. A classpath is complete. A WAR is not: it presupposes a container of matching release with matching modules, and this precondition is recorded nowhere in the artifact.

Against

When several applications run on one server. An installed Jetty serves several archives from one JVM. Embedded, every application pays its own base footprint — with three small applications, that is the decisive point.

When the server is maintained by someone else. Then the separation is not an inconvenience but a boundary of responsibility. A maintainer who can update Jetty without having every application rebuilt is an advantage, not an obstacle.

When nobody checks the dependencies. An embedded server disappears into the dependency tree. Without a check in the build that reports known vulnerabilities, the switch is a step backwards — not technically, but organizationally.

When the application needs container features that otherwise come for free: JNDI resources, several contexts, a deployment directory for third-party archives. All of it can be rebuilt in an embedded setup, and none of it is worth the effort when it is available ready-made.

The Honest Summary

For the case of this series — one application, one server, one responsible person, regular releases — the embedded setup is the better fit. It is not faster in operation and not leaner as an artifact; it is more complete, and it moves a decision to where it is being made anyway.

For a server hosting several applications from several teams, the answer is the reverse. Both setups are correct; they answer different questions.

Outlook on Part 4

The boundary has shifted for the first time. Jetty now belongs to the application. What is still open lies in plain sight on the server.

What This Part Cost

The bootstrap from Chapters 4 through 10 comes to about 60 lines — and three of them are the ones you would not write without this text:

• ForwardedRequestCustomizer, otherwise the session cookie loses its Secure flag,
• the WebSocket initialization, otherwise Push fails,
• the i18n.provider parameter, otherwise the language switcher has no effect.

None of these three failures announces itself. Whoever writes the bootstrap themselves takes on a duty of care that previously sat in sixteen module files maintained by someone else.

What Still Lies Next to It

/opt/vaadinapp/
├── app.jar     8,908 bytes — one class
└── lib/        127 archives, 29.74 MB

An application archive of nine kilobytes and a directory with 127 libraries. The launch command names both:

java -cp 'app.jar:lib/*' com.svenruppert.flow.Application

That works, and it is inconvenient. A deployment consists of two parts that belong together and lie apart; a rollback has to wind both back; and whoever passes the application on passes on a directory, not an artifact.

What Part 4 Makes of It

Bootstrap and packaging are two different decisions. This part answered the first: who starts the server? Part 4 answers the second: how does the result get onto the target machine?

Two answers stand against each other there:

The chapters there: how a fat JAR is built, where it causes problems — Chapter 12 of this part has already given a foretaste —, what a thin distribution gains, and what releases with symlink and rollback look like on top of it.

The choice is not obvious. A fat JAR is one file and therefore convenient; but it turns every update of a single library into a complete rebuild, and it has a known breaking point in META-INF/services. A thin distribution stays decomposable, but demands a directory that has to be correct — as Chapter 12 showed with eleven wrong files.

The Boundary Keeps Moving

At the end of Part 6, the application runs on a server with no Java installed.

Why the intermediate state deliberately looks like this: a fat JAR would have been possible in this part. It would have obscured the question of what distinguishes bootstrap from packaging — and precisely this distinction is the first sentence of Part 4.
