Vaadin Deployment on Hetzner — Part 4: Fat JAR and Thin Distribution

Fourth part of the series Vaadin – Deployment on Hetzner. The focus is not on the bootstrap but on the packaging: one archive or a directory tree, and what that means for delivery, rollback, and diagnosis. All commands, outputs, and measurements come from an actual run.

Bootstrap and packaging are two decisions

At the end of Part 3, the application brings its own server. There is no /opt/jetty anymore, no start.d/*.ini, no module mechanism — just a main() method that assembles server, connector, and context. What sits on the reference server looks like this:

/opt/vaadinapp/
├── app.jar            8,908 Bytes
├── lib/               127 archives, 29.74 MB
├── logs/
└── releases/

It is started with an explicit classpath:

java -cp '/opt/vaadinapp/app.jar:/opt/vaadinapp/lib/*' \
     com.svenruppert.flow.Application

That is a delivery form. But it is not one that was ever decided on. It is what remained after Part 3 had answered a different question.

The boundary runs differently here

Every part so far has moved a boundary. Part 1 turned the application into a service, Part 2 made it publicly reachable, Part 3 pulled the server behind the dashed line. This part moves no boundary. It changes not a single line of Java.

That is not modesty but the point of this part: the bootstrap and the packaging are two independent decisions, and they are regularly confused with each other.

Part 3 left the second question open — visible in the fact that the delivery there knows neither a start script nor a release structure. The classpath sits in the systemd unit, the directory /opt/vaadinapp contains exactly one version, and a change overwrites it.

Two answers to choose from

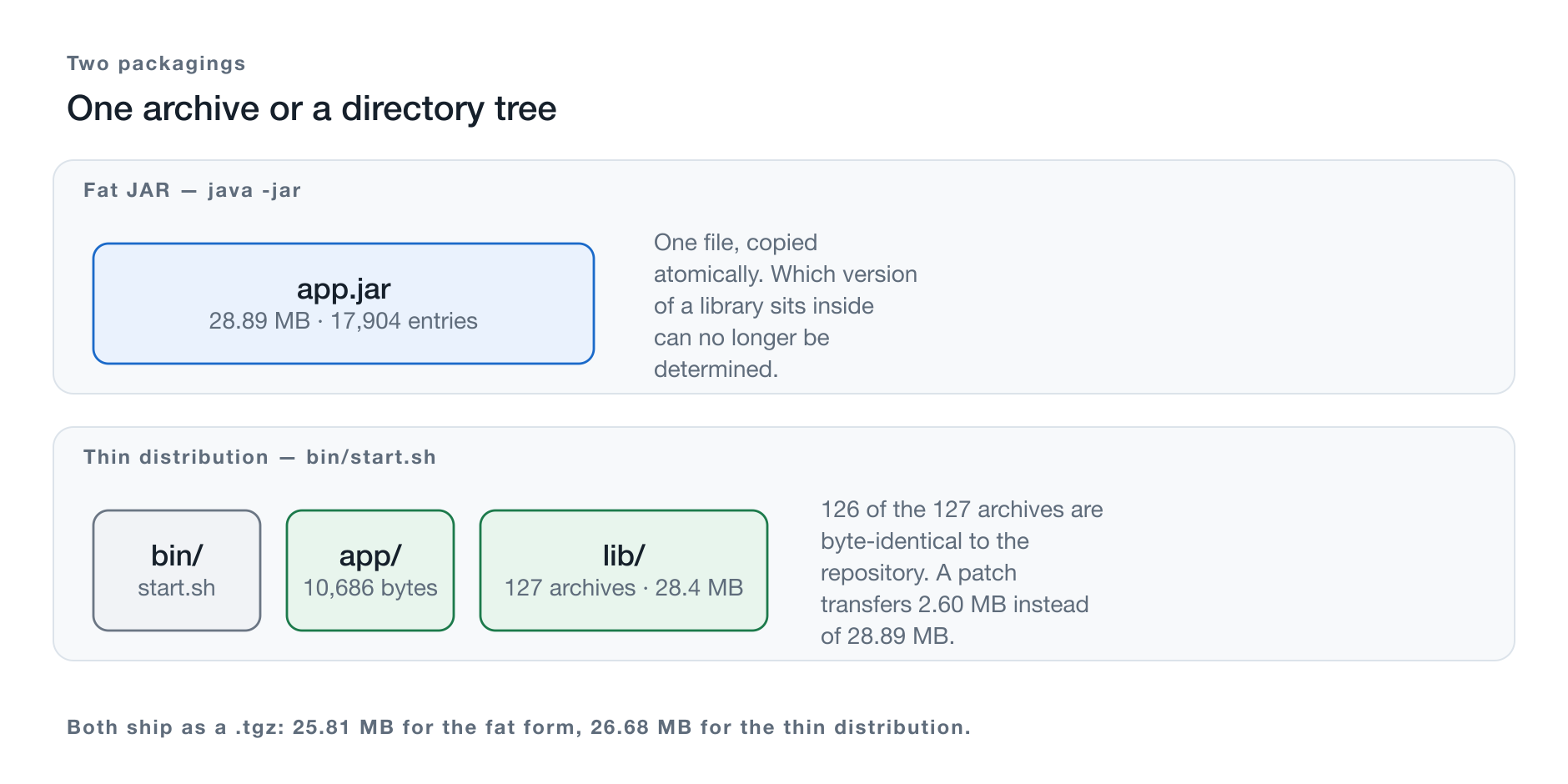

Figure 1: The same classes, the same dependencies — two delivery forms.

The Fat JAR puts everything into a single archive. 128 files become one. Startup is java -jar, delivery is an scp, and what lies inside the archive can no longer be seen from the outside.

The Thin Distribution keeps the separation and organizes it: the start script in bin/, the application archive in app/, the dependencies in lib/. Startup is a script, delivery is a directory, and every library remains visible as its own file.

Both forms are old, both are in use, and neither is the more modern one. Whoever pits them against each other is really asking a different question:

Why these are two profiles and not two modules

Part 3 introduced a separate Maven module for each delivery form — war-jetty and embedded-jetty. The reason was compelling: both forms needed the same source tree under incompatible assumptions, and exactly that produced the mistake that carried Jetty into the WAR.

Here, that conflict does not exist. Fat JAR and Thin Distribution arise from the same classes, the same dependencies, and the same scopes. They differ solely in how the result is wrapped up. Two modules that contain no Java code and differ only in one plugin block would be scaffolding without substance — the same kind of construction Part 3 criticized in the deleted _shadejar profile.

That is why the reactor stays at three modules, and the two packagings are two profiles of one of them:

mvn -Pproduction,thin   package     # bin/, app/, lib/, and a .tgz
mvn -Pproduction,fatjar package     # bin/, app/ with one archive inside
mvn package                         # just the application archive, for development

The code state for this part

The repository carries the state this part describes as tag teil-04. A git diff teil-03 teil-04 shows exactly what was added: the two profiles, the assembly descriptors, and the start script — not a line of Java.

git clone https://github.com/svenruppert/Blog-Vaadin-Deployment-on-Hetzner
cd Blog-Vaadin-Deployment-on-Hetzner
git checkout teil-04

At state teil-04, there is no bill of materials in the release yet. The project does generate an SBOM, but it stays in the build directory. Why that is a shortcoming and how it gets fixed is the subject of a separate article; the measurements in this part refer to the state without it.

What this part delivers

At the end, both forms stand built side by side: an archive of just under 29 MB and a directory tree of 130 files, both from the same source code, both with the same start script. Plus the places where the merging fails silently, and the reason why a Fat JAR starts at all where Part 3 had measured the opposite.

Delivery happens in Part 5. That is where the releases in numbered directories come in, the current symlink, the rollback — and the measurement that decides between the two forms. Part 1 had explicitly deferred the symlink procedure to “where it unfolds its purpose with the directory distribution”; that promise is redeemed in the next part.

The starting point is the question every packaging begins with: what does the build leave behind that wants to be packaged in the first place?

What the build leaves behind

Before deciding on packagings, it must be clear what is to be packaged. A mvn -Pproduction package in the reactor leaves behind not a single result but a set of components of very different sizes and origins.

The application code

The embedded-jetty module produces an archive of 10,686 bytes. It contains a single class: Application, the bootstrap from Part 3. Nothing else.

$ ls -l embedded-jetty/target/vaadinapp-embedded-jetty-00.01.00.jar
-rw-r--r--  10686  vaadinapp-embedded-jetty-00.01.00.jar

Ten kilobytes against just under thirty megabytes of dependencies — the ratio is roughly 1 to 2,800. That number is the reason the question of this part gets asked at all: if something changes in the application, ten kilobytes change. Everything else stays as it was.

Vaadin and the production bundle

The application itself — views, security layer, translations — lives in the core module and weighs 2.47 MB. The larger part of it is not Java bytecode but the production bundle: 142 entries under META-INF/VAADIN, left there by the vaadin-maven-plugin’s build-frontend.

$ unzip -l lib/vaadinapp-core-00.01.00.jar | grep -c META-INF/VAADIN
142

This bundle is only produced under -Pproduction. If it is missing, the application starts anyway — and serves an empty page. Part 3 therefore built a check into the bootstrap that aborts startup instead of offering a server that has nothing to display.

Jetty

26 archives, 4.1 MB. This is the server Part 3 turned into a dependency: jetty-server, jetty-ee11-webapp, the annotation scanner, the WebSocket container, and their underpinnings.

For comparison: the Jetty installation Part 3 dismantled occupied 53 MB. The embedded setup gets by with a thirteenth of that, because it brings only the libraries and not the module mechanism, startup process, and deployment scanner.

The remaining dependencies

The first row deserves a look. A single archive, bcprov-jdk18on, accounts for 30 percent of the entire delivery. BouncyCastle provides Argon2id for the password hashes; alongside that, the library brings the complete rest of its cryptography, none of which the application ever calls.

This is the point where the temptation arises to clean up with minimizeJar — and the point where that temptation must be resisted. The minimization works via static reachability; it does not see what gets loaded via ServiceLoader, reflection, or a provider name in a configuration file. With a cryptography library whose algorithms are registered in exactly that way, this is no theoretical risk. The series keeps BouncyCastle in full.

What follows from this

Two observations carry the rest of this part.

First: the components change at different speeds. The ten kilobytes of application code change with every bug fix; the 8.5 MB of BouncyCastle change when a security advisory forces it. A packaging that treats both the same transfers everything on every change.

Second: the components cannot be thrown together arbitrarily. 127 archives carry 36 service provider files, five of which share the same name. Today they sit side by side because every archive has its own META-INF. Whoever puts everything into one archive must answer this question — otherwise chance answers it. Chapter 5 shows what happens then.

The Fat JAR

The basic idea

A JAR is a ZIP archive with a manifest. The Java runtime places no condition on its content other than that class files sit under their package path. Nothing prevents putting the content of all dependencies into the same archive.

That is exactly what a Fat JAR is: 128 archives are unpacked and their content written into one shared archive. What results is, to the JVM, a perfectly ordinary archive — it does not notice that it was assembled from many.

The appeal is obvious: one file. Copying is atomic, there is no classpath to formulate, no directory that can arrive incomplete during transfer, and no way to forget a library.

Executable archive and manifest

java -jar archiv.jar works if the manifest names a Main-Class:

Manifest-Version: 1.0
Main-Class: com.svenruppert.flow.Application
Multi-Release: true

The second entry is the one that gets overlooked. Several dependencies ship version-dependent classes under META-INF/versions/; in the built Fat JAR of this application there are 1,576 entries. Without Multi-Release: true, the JVM skips every one of them and uses the base version — no message, no error, and possibly different behavior.

This fits a pattern that runs through this part: packaging mistakes do not announce themselves at build time.

Building with Shade

There are three ways to produce a Fat JAR. The series uses maven-shade-plugin, and the other two were ruled out for reasons that belong to the subject matter.

Nested archives — Spring Boot’s approach — place the archives as archives inside the outer archive. That preserves their separation but demands a custom class loader, because the JVM does not read archives inside archives on its own. The application would then face the problem from Part 3 again: java.class.path would contain only the outer archive, and Jetty’s scanner would not see the inner ones. Spring Boot solves this with its own class loader and its own integration with the frameworks. Without that substructure, the approach is the worse choice for an application that relies on annotation scanning.

maven-assembly-plugin could do both, but its prefabricated descriptor jar-with-dependencies does not merge META-INF/services — it declares no containerDescriptorHandler. The files then overwrite each other, and what that wreaks is shown in Chapter 5 on a running example.

That leaves Shade. The configuration sits in a profile of the embedded-jetty module:

<plugin>
    <groupId>org.apache.maven.plugins</groupId>
    <artifactId>maven-shade-plugin</artifactId>
    <executions>
        <execution>
            <id>shade-application-jar</id>
            <phase>package</phase>
            <goals><goal>shade</goal></goals>
            <configuration>
                <outputFile>${project.build.directory}/vaadinapp-${project.version}-fat.jar</outputFile>
                <createDependencyReducedPom>false</createDependencyReducedPom>
                <minimizeJar>false</minimizeJar>
                <transformers>
                    <transformer implementation="…ManifestResourceTransformer">
                        <mainClass>com.svenruppert.flow.Application</mainClass>
                        <manifestEntries>
                            <Multi-Release>true</Multi-Release>
                        </manifestEntries>
                    </transformer>
                    <transformer implementation="…ServicesResourceTransformer"/>
                </transformers>
                <filters>…</filters>
            </configuration>
        </execution>
    </executions>
</plugin>

Two settings deserve a justification.

outputFile places the merged archive next to the ordinary one instead of replacing the module’s main artifact. Without this line, only the Fat JAR would remain after the build — and with it, nothing left to compare it against. Both forms are meant to sit side by side in target/.

minimizeJar=false, for the reason from Chapter 2: minimization removes what is not statically reachable and thereby misses everything loaded via ServiceLoader or reflection. With 30 percent cryptography in the archive, this is not a setting to economize on.

The invocation:

mvn -Pproduction,fatjar package

The result is a file of 28,890,183 bytes with 17,904 entries, started with java -jar, HTTP 200 on / and /login.

It is not delivered bare but in a release of the same shape as the Thin Distribution — the justification for that is in Chapter 6. Which first raises a question that Part 3 had answered differently.

Why the Fat JAR works where java -jar failed

Part 3 carries a chapter titled “Why there is no java -jar”. It justifies this with a measurement:

The reasoning there: with java -jar, java.class.path contains a single entry — the application archive. Exactly this property is what Jetty’s MetaInfConfiguration reads to determine which archives the annotation scanner opens. No scan, no RouteRegistryInitializer, no StaticFileHandler. The server responds, and every request fails.

The Fat JAR is started with exactly this java -jar. And it runs.

The resolution

It is the same mechanism, viewed from the other side.

With java -jar, one archive sits on the classpath, and exactly this one is searched. The only question is what lies inside it.

In the Thin Distribution, the ServletContainerInitializer Vaadin needs sits in flow-server. That file is never opened, because it is inside one of the 127 archives that are not on the classpath. In the Fat JAR, it sits in the same archive as everything else.

Whoever has understood this also understands why Spring Boot brings its own class loader. That is not a quirk but the price of keeping the archives as archives and still having them found.

The second place where the same thing happens

The annotation scan is not the only place where the bootstrap depends on several archives contributing. Part 3 assembled the base resource of the web context by hand, because several archives bring a META-INF/resources branch:

Collections.list(Application.class.getClassLoader()
        .getResources("META-INF/resources/"))

At startup, this line writes to the log how many roots it found. The comparison of both forms:

Thin Distribution:  Serving static web resources from 5 classpath root(s)
Fat JAR:            Serving static web resources from 1 classpath root(s)

Both serve the same files. Only the merging happens at different points in time — for the Fat JAR at build time through Shade, for the Thin Distribution at startup through the class loader. It is the same difference as with the classpath, made visible in a second place.

This also makes clear which risk the Fat JAR carries at this point: if Shade lays two identically named files on top of each other, one wins and the other is gone. In this application, that does not happen — the overlapping resources are exclusively license and manifest files, not one of which is ever served. Verified, not assumed: the build reports the overlaps, and the list contains META-INF/NOTICE.md, META-INF/LICENSE, and relatives.

What this means for the choice

It does not mean that the Fat JAR is the better form. It means that the statement from Part 3 needs to be phrased more precisely than it was there:

The Thin Distribution solves this with an explicit classpath, the Fat JAR with a complete archive. Both are answers to the same condition.

And it means that a packaging takes on tasks that would otherwise occur at runtime — which also means it can fail where at runtime there was nothing to fail. The next chapter demonstrates what that looks like.

Trouble spots in the Fat JAR

128 archives have 128 META-INF directories. One archive has one. What happens in between is the actual content of this chapter — and all four trouble spots share the same property: they do not announce themselves at build time.

Service providers overwrite each other

The ServiceLoader finds providers via files under META-INF/services/, named after the interface. In this application there are 36 such files with a combined 85 entries — spread across 27 distinct names. Five names occur more than once.

Side by side in lib/, that is no problem: every archive has its own META-INF, and the ServiceLoader reads all occurrences via getResources(). In a shared archive, the same path can exist only once.

The most significant of the five names:

META-INF/services/jakarta.servlet.ServletContainerInitializer

  atmosphere-runtime-3.0.5      AnnotationScanningServletContainerInitializer
                                ContainerInitializer
  flow-server-25.2.6            LookupServletContainerInitializer
                                RouteRegistryInitializer
                                ErrorNavigationTargetInitializer
                                AnnotationValidator
                                WebComponentExporterAwareValidator
                                WebComponentConfigurationRegistryInitializer
                                VaadinAppShellInitializer
  jetty-ee11-websocket-…-server JakartaWebSocketServletContainerInitializer

There sits RouteRegistryInitializer — exactly the class whose absence Part 3 diagnosed. And in the same situation is org.eclipse.jetty.ee11.webapp.Configuration, claimed by four archives; one of them supplies the annotation scanner, another the twelve base configurations of the web context.

The ServicesResourceTransformer merges these files. The evidence that it does its job:

Nine files fewer, not one entry lost.

What happens without it

This can be demonstrated. Take the same Fat JAR and replace each of the five multiply assigned service files with just one of its versions — exactly what merging without the transformer produces — and the result is:

$ java -jar fat-naive.jar
[main] INFO  Serving static web resources from 1 classpath root(s)
[main] INFO  Started oejs.Server@272ed83b{STARTING}[12.1.12,sto=0] @61ms
[main] INFO  Embedded Jetty serving http://127.0.0.1:8097/

$ curl -o /dev/null -w '%{http_code}\n' http://127.0.0.1:8097/
500

java.lang.NullPointerException: Cannot invoke
  "com.vaadin.flow.server.StaticFileHandler.serveStaticResource(…)"
  because "this.staticFileHandler" is null

This is literally the same failure as pitfall 15 from Part 3 — the same exception, the same startup time in the double-digit millisecond range, the same responding but unusable application:

Two completely different causes — there an incomplete classpath, here a destroyed provider directory — lead to the identical symptom. Whoever has seen this signature once will recognize it again: if the server starts in under 200 milliseconds, no scan has taken place.

Signatures break

Signed archives carry files with the extensions .SF, .DSA, and .RSA under META-INF. They describe checksums of the entries of the archive they were created for. Carried over into a different archive, they no longer match its content, and the JVM rejects the archive with a SecurityException.

<exclude>META-INF/*.SF</exclude>
<exclude>META-INF/*.DSA</exclude>
<exclude>META-INF/*.RSA</exclude>

The side effect must be named: the signature is gone. Whoever needs it re-signs the Fat JAR after the build — the individual signatures cannot be salvaged.

Module descriptors collide

An archive can carry a module-info.class. 128 archives carry several. Laid on top of each other, one remains — describing the requires and exports of a module that no longer exists in that form.

<exclude>module-info.class</exclude>
<exclude>META-INF/versions/*/module-info.class</exclude>

The second line is easily forgotten: multi-release archives place their module descriptor under META-INF/versions/9/, not in the root.

Multi-release versions disappear

The opposite pole — here nothing is excluded; something is set. The built Fat JAR contains 1,576 entries under META-INF/versions/. Without Multi-Release: true in the manifest, the JVM skips them all.

One exclusion too many and one manifest entry too few thus lead to opposite failures, and both stay silent.

Identically named resources

That leaves the general case: two archives, the same file, different content. Shade reports this as a warning and keeps one. When building this application, seven groups are affected:

 10 archives → META-INF/NOTICE.md
  7 archives → LICENSE
  7 archives → META-INF/LICENSE.md
  6 archives → META-INF/LICENSE.txt
  3 archives → META-INF/LICENSE, META-INF/NOTICE
  2 archives → META-INF/versions/9/OSGI-INF/MANIFEST.MF
128 archives → META-INF/MANIFEST.MF

Exclusively license, notice, and manifest files. None of them is read at runtime, none is served — in this case the warning is without consequence.

It must be read anyway, every single time. The list does not say that overlaps are harmless; it says that they are harmless here. If a dependency were added that brings a configuration file under a common name, it would appear in the same list, between the license files, and would be overlooked.

The legal side finding belongs here too: ten archives ship a META-INF/NOTICE.md, nine of them disappear. Whoever redistributes third-party software also passes on the notice obligations. A Fat JAR does not fulfill them by itself — the merged license collection is a separate build step, which this series covers via the SBOM it already generates.

Delivering the Fat JAR

Delivering a Fat JAR is the shortest section of this part, and that is its most important characteristic.

The procedure

The Fat JAR is not deposited as a bare file but as a release of the same shape as the Thin Distribution — just without lib/:

vaadinapp-00.01.00/
├── VERSION
├── bin/
│   └── start.sh          same file as in the thin distribution
└── app/
    └── vaadinapp.jar     28,89 MB

That is not a formality. The start script from Chapter 9 sets

CLASSPATH="$APP_HOME/app/*:$APP_HOME/lib/*"

as the classpath. If lib/ is missing, the second half comes up empty — and the one complete archive in app/ is all the annotation scan needs. Exactly the property from Chapter 4. The same file starts both forms, byte for byte unchanged.

The release is produced in the same profile as the archive:

mvn -Pproduction,fatjar package
# → target/vaadinapp-00.01.00-fatdist.tar.gz   25,807,851 Bytes

The delivery afterwards is the same as in Part 5, Chapter 3:

scp embedded-jetty/target/vaadinapp-00.01.00-fatdist.tar.gz \
    sven@demo.svenruppert.com:/tmp/

ssh sven@demo.svenruppert.com '
  STAMP=$(date -u +%Y-%m-%d-%H%M)-fat
  sudo install -d -m 750 -o root -g vaadinapp /opt/vaadinapp/releases/$STAMP
  sudo tar -xzf /tmp/vaadinapp-00.01.00-fatdist.tar.gz \
           -C /opt/vaadinapp/releases/$STAMP --strip-components=1
  sudo chown -R root:vaadinapp /opt/vaadinapp/releases/$STAMP
  sudo ln -sfn releases/$STAMP /opt/vaadinapp/current
  sudo systemctl restart vaadinapp'

The systemd unit is not touched in the process. It calls /opt/vaadinapp/current/bin/start.sh, and which form lies behind it is none of its business. That is the payoff of the cut from Chapter 9: because the release says how it wants to be started, the change of form is the same procedure as any release change — one symlink and one restart.

And it is the precondition for Part 5, Chapter 6 to be able to measure at all: same machine, same unit, same environment, same hardening. The only difference is the content of the release directory.

What stands out — and what it costs

The shape of the release is the same; its content is not. Where the Thin Distribution has a lib/ with 127 named archives, here stands one file — and with it, the question of which libraries belong to the application disappears. It is not hard to answer — it can no longer be asked:

$ ls /opt/vaadinapp/current/
VERSION  app  bin
$ ls /opt/vaadinapp/current/app/
vaadinapp.jar

$ unzip -l /opt/vaadinapp/current/app/vaadinapp.jar | tail -1
17,904 files

Just under eighteen thousand entries and no provenance. Whether the version of BouncyCastle in this archive is the one for which a security advisory has just appeared can no longer be determined here — the classes are inside, the version numbers are not.

Against this there is exactly one effective remedy, and it belongs to due diligence anyway: the SBOM the reactor generates with cyclonedx. It is written at build time, when the provenance is still known, and must be kept together with the artifact. For the Fat JAR it is not an accessory but the only remaining source of this information.

The difference from the WAR in Part 1

For updates, Part 1 decided in favor of copying and against the symlink — on the grounds that for a single file, a symlink offers nothing that mv does not already provide. The same holds for the Fat JAR: here too, one could work without a symlink.

It appears in the commands above anyway, and the reason lies not with this form but with the procedure: from Part 5, Chapter 3 on, the reference server works with release directories, and the Fat JAR hooks in there as one of several releases. Only this way is the switch between the two forms the same procedure that Part 5, Chapter 4 describes — and not a special path that exists solely for the measurement.

What is remarkable is how little remains that distinguishes the two forms. Not the unit, not the start script, not the rollout procedure, not the hardening. Only the content of one directory. That is exactly why the choice between them is not an architecture decision but an operations decision — which is what Part 5, Chapter 7 comes down to.

The Thin Distribution

The second answer keeps the separation the Fat JAR dissolves, and organizes it. What Part 3 left behind as app.jar next to a lib/ is given a form here:

vaadinapp-00.01.00/
├── VERSION
├── bin/
│   └── start.sh
├── app/
│   └── vaadinapp.jar          10,686 Bytes
└── lib/
    ├── bcprov-jdk18on-1.84.jar
    ├── flow-server-25.2.6.jar
    └── …                      127 archives, 28.4 MB

Three directories whose division is not aesthetic but maps the speed of change.

bin/

Here lies how this release wants to be started. It is not the machine that knows this but the delivery itself — which means it can also be started outside systemd, during development, on another computer, in a container. Chapter 9 justifies what belongs in this script and what does not.

app/

An archive of ten kilobytes. It contains the bootstrap and nothing else.

That this directory is created for a single file looks like ceremony and is the heart of the matter: this is the part that changes. A bug fix to the application changes app/ and leaves lib/ untouched. If the two were merged, this distinction could no longer be made — and with it would go the practical advantage of this form, which Part 5, Chapter 6 measures in bytes.

A note on this series’ application: the application code here lives in the core module and therefore in lib/, not in app/. That is a consequence of the reactor structure from Part 3 — core is a dependency of embedded-jetty, and copy-dependencies treats it like any other. In a project that keeps application code and bootstrap in one module, it would live in app/. This changes nothing about the statement, but it shifts the boundary: in this application it is 2.47 MB in lib/ that change frequently, instead of ten kilobytes in app/.

lib/

127 archives, each under its own name with its own version number.

This is the difference from the Fat JAR that is easiest to demonstrate. The question “which version of BouncyCastle is on the server?” answers itself here like this:

$ ls /opt/vaadinapp/current/lib | grep bcprov
bcprov-jdk18on-1.84.jar

With the Fat JAR, the same question cannot be answered. Not harder — cannot be answered: the classes are inside, their provenance is not. One can search for a class and infer which library contributed it; the version is no longer written anywhere.

For a machine you administer yourself, this is the decisive difference. When a security advisory appears for a library, the first question is always the same: am I affected? The Thin Distribution answers it with an ls.

VERSION

One line with the version number, filled in by Maven at build time. It is needed because the release directories on the server are named after the point in time and not after the version — the justification is in Part 5, Chapter 4. Without this file, a release would not reveal which version it contains.

What this form does not provide

It is not atomic. 128 files cannot be replaced in one step, and an interrupted copy leaves behind a state that is neither the old one nor the new one. That is exactly where the procedure in Part 5, Chapter 4 comes from, and exactly why it appears in this part and not already in Part 1.

And it is sensitive to anything that settles unnoticed into lib/. Part 3 learned that the hard way: the classpath wildcard lib/* takes every file ending in .jar, including the eleven AppleDouble files that macOS’s tar had thrown in. The wildcard checks nothing; it only expands.

Separating application archive and libraries

The separation from Chapter 7 must come into being at build time. Maven offers two ways to do this, and they are not mutually exclusive — the series uses both, for different purposes.

The classpath is the actual decision

First, the observation from which everything else follows: a classpath is an ordered list. Java searches it from the front and takes the first hit.

java -cp 'app/*:lib/*' com.svenruppert.flow.Application

Two entries, in this order. If the same class exists in app/ and in lib/, app/ wins. That is no accident but the basis for being able to replace a single class without touching the library it comes from — a tool for emergencies, not for everyday use, but it exists only as long as the components stay separate.

The wildcard * is a peculiarity of the JVM here, not of the shell. Java itself expands it to all .jar files in the directory, in no defined order. Whoever needs a particular order within lib/ cannot enforce it this way; the archives must be listed individually. For this application, that is of no consequence — there is no class assigned twice — but it is the reason the quotation marks must surround the expression: without them, the shell expands, and Java receives a list of file names instead of a classpath.

copy-dependencies

The simpler way. maven-dependency-plugin copies everything needed at runtime into a directory:

<plugin>
    <groupId>org.apache.maven.plugins</groupId>
    <artifactId>maven-dependency-plugin</artifactId>
    <executions>
        <execution>
            <id>collect-libraries</id>
            <phase>prepare-package</phase>
            <goals><goal>copy-dependencies</goal></goals>
            <configuration>
                <outputDirectory>${project.build.directory}/lib</outputDirectory>
                <includeScope>runtime</includeScope>
                <overWriteIfNewer>true</overWriteIfNewer>
            </configuration>
        </execution>
    </executions>
</plugin>

includeScope=runtime is the line that counts. It takes compile and runtime along and leaves provided and test out. In the WAR from Parts 1 and 2, the Servlet API was provided — the container supplied it. Here it is compile, because the application itself is the container. This one scope change is the entire difference between the two modules; everything else follows from it.

The result is exactly what Part 3 delivered: an application archive and a lib/ next to it. For development, that is entirely sufficient.

Why that is not enough for a delivery

Three things are missing.

A place. After the build, target/ also contains test classes, Checkstyle reports, and intermediate artifacts. What gets delivered must be named as a unit, not picked out of a build directory.

The start script. It lives in src/main/dist/bin and is not touched by copy-dependencies — the plugin copies dependencies, not the project’s own files.

The transfer. A directory cannot be copied like a file. It needs a transport form, and this transport form must preserve the permissions — in particular the execute permission on the start script, which an ordinary zip loses.

That is why Part 5, Chapter 2 adds a second step that turns the components into a delivery. First, however, the question the start script raises, and which reaches further than Maven: what belongs in it at all?

The start script

Since Part 1, the complete start command has been in the systemd unit:

ExecStart=/var/lib/vaadinapp/.sdkman/candidates/java/current/bin/java \
    -Djava.io.tmpdir=/var/lib/vaadinapp/work \
    -Dapp.storage.dir=/var/lib/vaadinapp/data \
    --add-exports java.base/jdk.internal.misc=ALL-UNNAMED \
    --enable-native-access=ALL-UNNAMED \
    -XX:MaxRAMPercentage=75 \
    -XX:+ExitOnOutOfMemoryError \
    -cp /opt/vaadinapp/app.jar:/opt/vaadinapp/lib/* \
    com.svenruppert.flow.Application

Nine lines that all seem to have the same right to be there. They do not.

The cut follows from what changes together

These nine lines can be sorted, by a single question: when does this change?

The upper half are statements about this build state. --add-exports java.base/jdk.internal.misc=ALL-UNNAMED is there because EclipseStore reaches into JDK internals; that is a property of this release’s dependencies, not a property of the server. Keeping it on the machine means: a release that needs one additional option demands a change to the unit — delivery and operations are coupled, although they would not have to be.

The lower half are statements about this machine. They do not belong in an archive that could be unpacked on several machines.

What follows from this

The upper half moves into bin/start.sh and is versioned with the release. The lower half stays in the unit:

Environment=JAVA_HOME=/var/lib/vaadinapp/.sdkman/candidates/java/current
Environment="JAVA_OPTS=-Djava.io.tmpdir=/var/lib/vaadinapp/work \
                       -Dapp.storage.dir=/var/lib/vaadinapp/data \
                       -XX:MaxRAMPercentage=75 \
                       -XX:+ExitOnOutOfMemoryError"
ExecStart=/opt/vaadinapp/current/bin/start.sh

And in the script:

APP_HOME=$(CDPATH= cd -- "$(dirname -- "$0")/.." && pwd)

JAVA_BIN=${JAVA_HOME:+$JAVA_HOME/bin/java}
JAVA_BIN=${JAVA_BIN:-java}

APP_OPTS="--add-exports java.base/jdk.internal.misc=ALL-UNNAMED \
          --enable-native-access=ALL-UNNAMED"
JAVA_OPTS=${JAVA_OPTS:-}

CLASSPATH="$APP_HOME/app/*:$APP_HOME/lib/*"

exec "$JAVA_BIN" $APP_OPTS $JAVA_OPTS \
     -cp "$CLASSPATH" com.svenruppert.flow.Application "$@"

The gain can be read off in one place: ExecStart has become one line and never changes again. A release that needs different JVM options brings them along. A rollback to an older release brings its options back — without anyone having to remember.

The price is just as concrete: systemctl cat vaadinapp no longer shows what is actually executed. Whoever wants to know reads /opt/vaadinapp/current/bin/start.sh in addition. A diagnostic path from Part 1 becomes one step longer, and that is a real loss, not a mere annoyance.

Three details that are not a matter of taste

exec — otherwise systemd watches the wrong thing. Without exec, the shell remains as the parent process, systemd sees it as the main process, and the SIGTERM on restart reaches the shell instead of the JVM. SuccessExitStatus=143 from Part 1 then no longer describes what the service does. The proof that exec takes effect is easy to produce — the process that was started as a script is the JVM afterwards:

$ ./bin/start.sh &
[1] 71668
$ ps -o pid,comm= -p 71668
71668 …/candidates/java/current/bin/java
$ pgrep -f 'bin/start.sh' | wc -l
0

The same process ID, a different program. The shell no longer exists.

The wildcard belongs to Java, not to the shell. -cp "$CLASSPATH" with quotation marks. Without them, the shell expands lib/* into 127 file names, and Java receives 127 arguments instead of one classpath.

The script writes nothing next to itself. No PID file, no redirection into a log file. Under ProtectSystem=strict from Part 1, the release directory is read-only for the service; a write attempt aborts the start. Logs go to the journal, as they have since Part 1.

Where the secrets go

Unchanged, into the unit, via systemd-creds. The script neither reads nor names them. Had the assignment been made differently — secrets into the release — a login secret would sit in an archive that gets built, copied, and archived. The rule by which the cut was made here prevents that by itself: a secret does not change with the release.

Outlook on Part 5

Both forms now exist, built. What distinguishes them is not yet decided at this point — and cannot be decided as long as neither of them has been deployed.

What remains open

The delivery itself. A Fat JAR is one file; an scp is enough. A Thin Distribution consists of 128 files, and there is no way to replace 128 files in one step. Exactly from this follows a procedure Part 1 had explicitly deferred: releases in numbered directories and a current symlink that moves atomicity from the files to the name.

The comparison. The question this series raised with “Fat JAR or Thin Distribution?” is a question of measurements — downtime, startup time, memory, change volume. Without a reference server, it cannot be answered.

The rollback. What happens when a release turns out to be no good. It is the actual reason for the entire release procedure, and it is done in two lines — provided the right things were done beforehand.

What is already taking shape

Two things from this part carry through into the measurement.

The two releases have the same shape. VERSION, bin/, app/, and only in the Thin Distribution a lib/. The start script is byte for byte the same file. So the systemd unit does not distinguish the forms, and switching between them is the same motion as any release change. Without this sameness, a comparison under equal conditions would not be possible at all — one would then be comparing two setups instead of two packagings.

The classpath decides more than the file size. Chapter 4 showed that one archive is enough exactly when it is complete; Chapter 5, that the same application comes up in 61 milliseconds on a destroyed provider directory and still can do nothing. Whoever looks at the startup times in Part 5 should keep that number in mind.

An expectation I write down beforehand

So that it remains verifiable: I expect that memory footprint and startup time do not differ between the two forms. The same classes, the same bootstrap, the same runtime — the packaging should change nothing about that.

One of the two expectations holds. The other does not, and the difference is large enough that it cannot be argued away. Which one it is, is in Part 5, Chapter 6.
